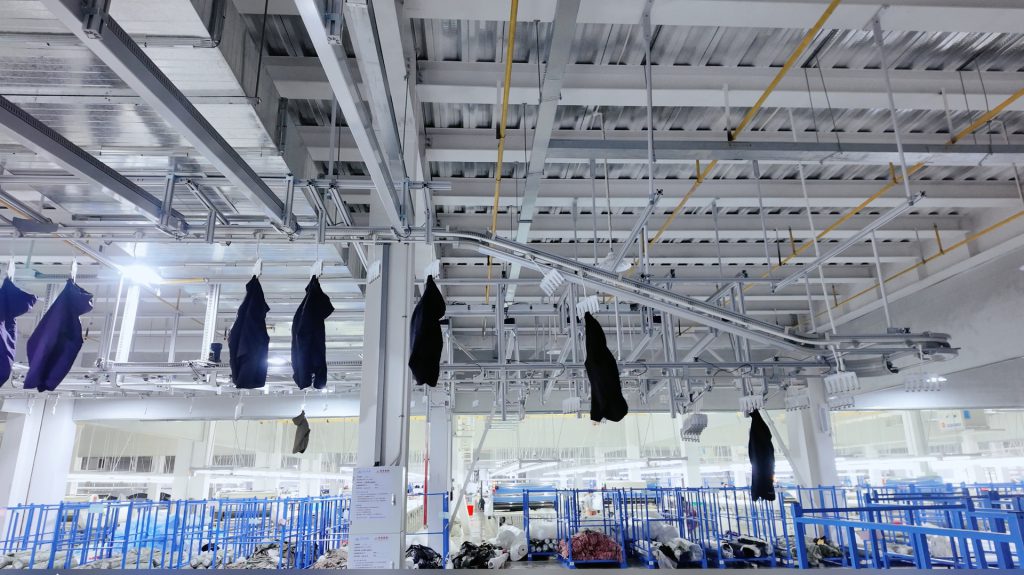

The Maidi Chain IoT Hanger System is a heavy-duty intelligent garment conveyor designed for production lines handling heavier textiles. Unlike standard hanger systems, this chain-driven solution uses robust brushless DC motors capable of reliably transporting garments weighing up to 5 kg per hanger — ideal for suits, winter jackets, down coats, uniforms, and other heavy apparel.

Technical Specifications

Conveyor Speed: 12–16 m/min, electronically adjustable
Drive System: Heavy-duty chain with brushless DC motor
Rail Height: 2600mm standard (accommodates longer garments)
Main Line Length: ≥ 3200mm (customizable per facility)
Hanger Capacity: Up to 5 kg per station
Control System: IoT-enabled PLC with touchscreen HMI
Material: Galvanized steel track, powder-coated frame
Communication: WiFi/Ethernet, cloud IoT platform

Chain Drive Advantage

The heavy-duty chain drive mechanism ensures smooth, reliable garment transport even under full load. The brushless DC motor provides precise speed control with minimal maintenance requirements, and the chain system eliminates belt slippage issues common in lighter systems when handling heavier garments.

Intelligent IoT Features

Each hanger station is equipped with IoT-enabled tracking. The system provides real-time production monitoring, automatic workload balancing across sewing stations, bottleneck detection, and dynamic carrier routing. Integration with Maidi’s SaaS manufacturing platform enables data-driven production optimization with efficiency improvements exceeding 30%.

Applications

Specifically designed for production lines manufacturing suits, formal wear, winter jackets, down coats, military/police uniforms, and other heavy garments where standard hanger systems cannot provide adequate support.

Why Choose This Machine

Key features that set this machine apart

HEAVY DUTY

Chain-driven transport mechanism with brushless DC motor handles garments up to 5 kg per station — perfect for suits, coats, down jackets, and uniforms.

INTELLIGENT ROUTING

Dynamic carrier routing automatically directs garments to the optimal workstation. Built-in bottleneck analysis ensures balanced production flow.

REAL-TIME TRACKING

IoT sensors track every garment through the production line in real-time. Monitor progress, identify delays, and optimize throughput from the cloud dashboard.

EXTENDED RAIL HEIGHT

2600mm standard rail height prevents longer garments like full-length coats and suits from dragging, maintaining quality throughout production.

SMART BALANCING

Automatic workload balancing distributes tasks evenly across operators and stations, eliminating idle time and maximizing production efficiency by 30%+.

LOW MAINTENANCE

Brushless DC motor technology eliminates brush wear, reducing maintenance intervals. Galvanized steel track resists corrosion for long-term reliability.

Brand	Maidi Intelligence
Speed	12–16 m/min
Working Width	≥ 3200mm main line length
Power Requirement	380V 3-Phase, Brushless DC Motor
Weight	Up to 5 kg per hanger station
