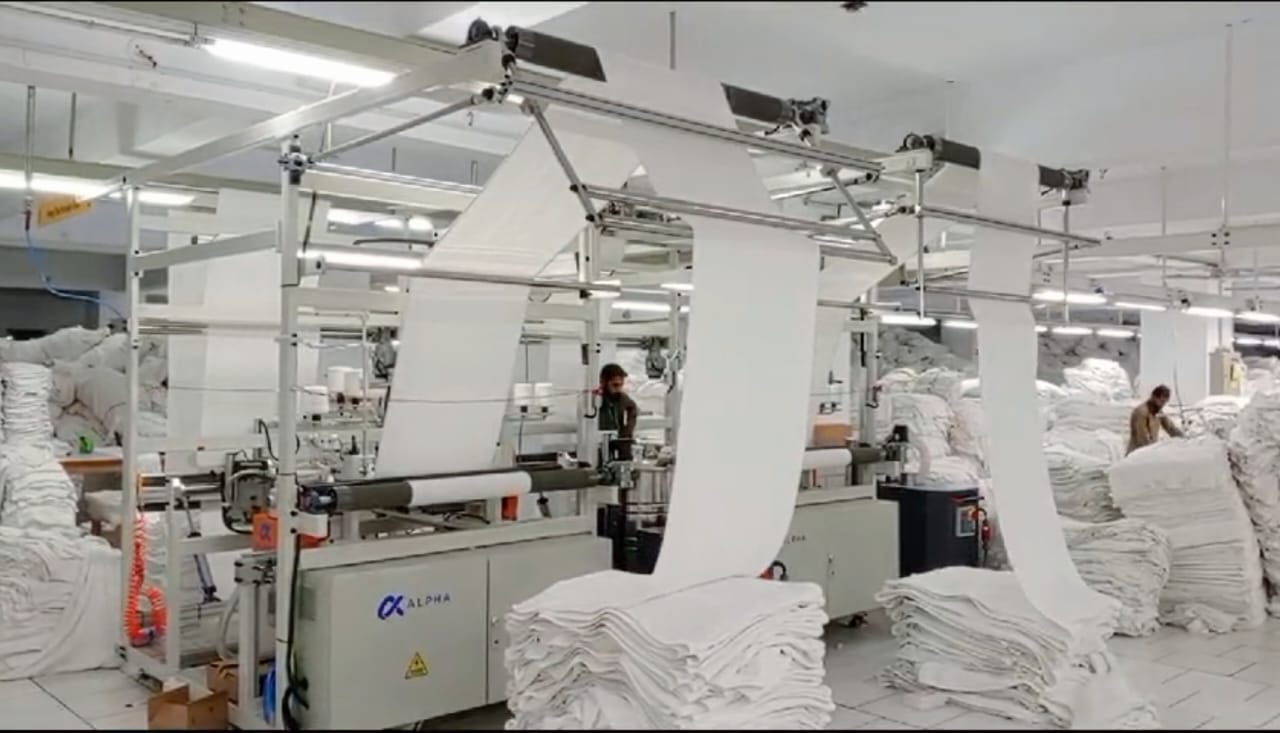

Following longitudinal slitting, slit terry towel lanes require continuous longitudinal hemming along both raw outer edges before individual towel blanks can be cross cut. Longitudinal selvage hemming folds cut edges inward, tucks loose yarn ends, and locks the seam with heavy duty twin needle chainstitch or overlock stitching. When done manually, operators must guide meters of heavy, bulky towel fabric through sewing folders by hand, resulting in inconsistent seam tension, wavy edges, and agonizingly slow production throughput. The Alpha Auto Length Hemming Machine completely automates longitudinal hemming, processing continuous towel rolls through synchronized dual sewing heads at line speeds up to thirty meters per minute.
Synchronized Dual Head Sewing Architecture and Edge Folding
The engineering core of the Alpha Auto Length Hemming Machine features two heavy duty industrial sewing heads mounted symmetrically across the fabric transport plane. As continuous towel webbing feeds forward, specialized spiral hem folders and pneumatic folding guides curl both outer cut edges into tight, uniform hems simultaneously. The folding guides accommodate varying fabric thicknesses, adjusting cavity dimensions dynamically whether handling dense hotel bath sheets or lightweight kitchen towels.
Positioned immediately ahead of the sewing needles, high speed mechanical trimmer blades trim stray yarn threads and loose edge fibers, ensuring that only pristine, uniform fabric edges enter the folding spirals. The dual sewing heads execute high elasticity three thread or four thread chainstitch seams that stretch naturally with the towel fabric without snapping during consumer use or hot commercial tumble drying. Both sewing heads operate in perfect electrical synchronization driven by brushless servo motors, guaranteeing identical stitch densities along both towel edges.
Active Edge Guidance and Dynamic Width Adjustment
Maintaining continuous hem alignment across thousands of meters of woven terry fabric requires active compensation for natural roll width fluctuations. Even premium woven towels exhibit subtle width variations of several millimeters along a continuous roll. Fixed width hemming machines would produce uneven hems, occasionally missing the fabric edge entirely or folding excessive hem widths that swallow usable towel surface.
The Alpha length hemming system incorporates high speed optical edge sensors that monitor both fabric selvages continuously. Independent motorized servo carriages support each sewing head and folding station. When an edge sensor detects fabric width expansion or contraction, the corresponding sewing carriage shifts laterally in microsecond increments, tracking the moving edge with surgical precision. The system maintains perfectly straight, parallel hems with consistent stitch margins across the entire roll length.
Tension Free Caterpillar Feed Belt Transport
Pulling wet or heavy terry fabric through sewing folders using conventional drop feed dogs creates severe fabric stretching. When stretched towels are subsequently cut and washed, the seams contract violently, resulting in unsightly seam puckering and distorted towel edges. The Alpha machine eliminates longitudinal tension by employing motorized caterpillar conveyor feed belts that clamp the fabric body gently above and below.
These rubberized multi rib feed belts advance the fabric smoothly through the folding and sewing zones at synchronized velocities matching sewing head needle penetrations. The towel fabric remains in a completely relaxed, neutral tension state throughout the entire hemming operation. Finished hems emerge flat, smooth, and entirely free of mechanical puckering or seam distortion.
Automated Thread Break Detection and Pressure Lubrication
Operating industrial sewing heads continuously at four thousand five hundred stitches per minute generates intense mechanical friction inside needle bars, looper drives, and gear assemblies. The Alpha machine incorporates a centralized pressurized oil mist lubrication circuit that circulates cooled, filtered mineral oil continuously through all moving components. Excess oil drains back into a sealed sump equipped with fine magnetic filtration, ensuring clean lubrication and zero oil staining on white towel goods.
High sensitivity optical and piezoelectric thread sensors monitor every active needle and looper thread line. If a thread break or bobbin exhaustion occurs, the sensor detects thread stoppage within ten milliseconds, instantly halting the machine before incomplete seams pass beyond the sewing zone. An overhead indicator beacon alerts operators, and the digital display highlights the exact broken thread station, enabling re threading in seconds.
In Line Cross Cutting Synchronization and Production Throughput
The Alpha Auto Length Hemming Machine is engineered to connect directly with downstream automated cross cutting machinery, creating an unbroken automated finishing line. Hemmed fabric exits the sewing zone and feeds into an intermediate motorized tension accumulator loop before entering an automated cross cutting station. In line synchronization eliminates roll rewinding, reduces intermediate handling labor, and maximizes total plant throughput.
A single automated length hemming line produces the daily output equivalent of twelve to fifteen skilled manual sewing operators. Consistent seam quality satisfies the most demanding quality audits from international luxury hotel chains and retail department store buyers, making the Alpha length hemming range a cornerstone of profitable modern towel manufacturing.
For complete technical specifications, available sewing head configurations, and floor space requirements, consult the official Alpha Auto Length Hemming Machine product catalog page for detailed engineering consultations and custom plant integrations.
Preventive Maintenance Schedules for Length Hemming Systems
Maintaining peak sewing reliability across continuous multi shift operations demands disciplined maintenance protocols:
- Daily lint cleaning and thread waste removal: Blow compressed air through looper compartments, thread tension disks, and feed belts twice per shift to prevent cotton fly accumulation.
- Daily needle point and trimmer blade check: Inspect sewing needles for burrs or bending and check trimmer blades for crisp shearing action, replacing worn parts immediately.
- Weekly looper timing and clearance verification: Check looper to needle clearance and looper return stroke timing using precision dial gauges to ensure flawless loop taking.
- Monthly oil pump filter and fluid level check: Inspect central pressurized oil filtration screens and replenish premium white mineral sewing oil to maintain optimal cooling.
- Quarterly caterpillar belt tension and surface check: Verify tension on upper and lower caterpillar feed belts and inspect rubber grip ribs for wear or oil contamination.
- Biannual edge tracking sensor calibration: Clean optical sensor lenses and verify servo response calibration to maintain micro millimeter edge tracking accuracy.
Intuitive Touchscreen Operation and Recipe Storage
Managing the Alpha length hemming range is straightforward thanks to an industrial touchscreen controller featuring clear graphical menus. Operators select stored recipes for specific towel styles, automatically setting sewing speeds, stitch densities, edge tracking sensitivities, and carriage widths.
Built in production counters track total hemmed linear meters, operating hours, and average production speeds in real time. Shift performance reports can be exported directly via USB or integrated into central factory management networks, giving production supervisors complete visibility over finishing department productivity and machinery uptime.
Differential Feed Kinematics and Corner Reinforcement Stitching
Terry fabrics possess inherent directional elasticity, stretching more along warp directions than weft directions. As continuous fabric webs travel through sewing folders, mechanical friction along folder spirals tends to stretch the outer fabric edge, causing wavy seam margins known as roping. The Alpha length hemming system incorporates precision differential feed kinematics within its caterpillar transport belts.
The speed ratio between upper and lower feed belts can be finely adjusted via digital stepper drives down to zero point one percent increments. By introducing calibrated micro gathering into the folded selvage immediately ahead of needle penetration, the machine counteracts friction stretching completely. Finished hems emerge straight, flat, and dimensionally stable. Furthermore, automated corner condensing stitch algorithms increase stitch density at roll seams, ensuring seam strength survives rigorous commercial laundering.
