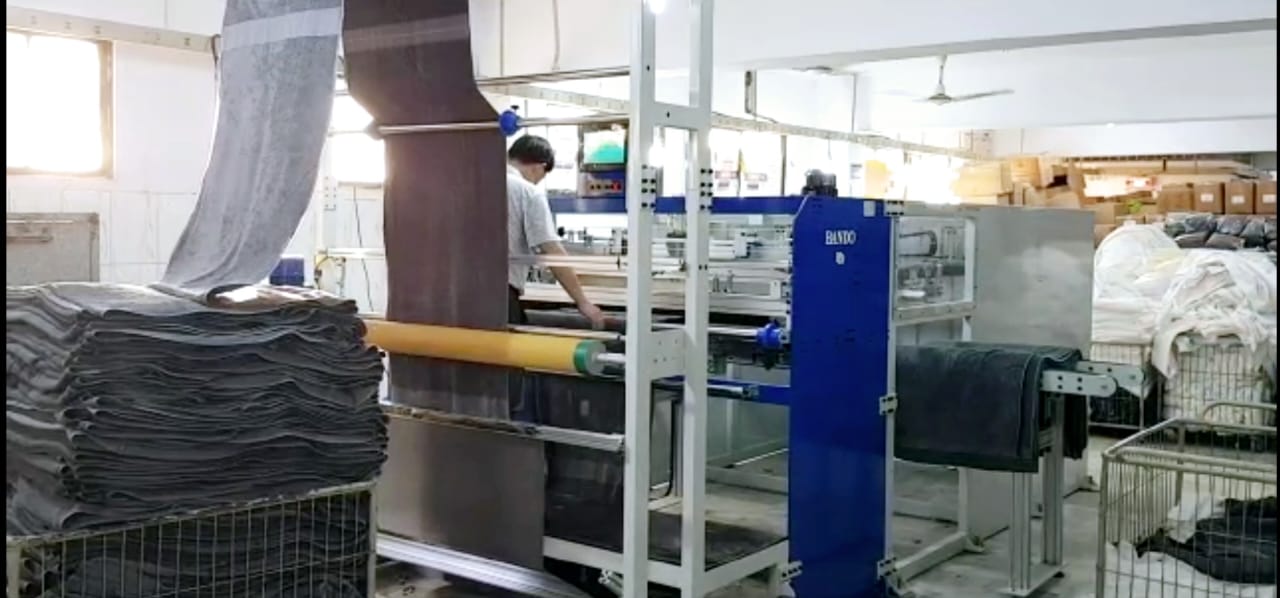

In automated terry towel finishing lines, cross cutting master continuous fabric webs into individual finished towel lengths represents the critical link between longitudinal hemming and final cross hemming. Towel master rolls feature decorative woven borders, fancy dobby rib headers, or jacquard woven patterns spaced at exact intervals along the roll. The cross cutting machine must identify the narrow plain weave cutting lane between consecutive towels and sever the fabric with razor sharp precision. Cutting even two millimeters off center ruins decorative borders, produces asymmetrical towel headers, and causes catastrophic fabric scrap. The Bando Auto Cross Cutting Machine solves this demanding challenge through advanced optical border detection and high speed transverse guillotine shearing, delivering pinpoint cutting accuracy at rates up to twenty five cuts per minute.
High Precision Optical Contrast and Weave Density Sensing
Woven terry towels undergo substantial dimensional relaxation, steaming, and shrinkage during dyeing and washing processes. As a result, the distance between consecutive towel headers is never mathematically identical throughout a multi hundred meter roll. Fixed length mechanical measuring rollers cannot reliably position cutting lines without accumulating severe positional drift over time.
The Bando Auto Cross Cutting Machine incorporates high resolution optical contrast sensors and laser distance sensors positioned above the moving fabric web. These optical sensors scan the passing textile surface continuously, analyzing reflected light intensity to detect the precise microscopic boundary where plush terry pile drops down into the dense, flat plain weave cutting lane. Advanced signal processing filters out surface lint and minor loop variations, locking onto the true geometric center of the cutting lane with repeatability within plus or minus one millimeter.
Pneumatic Clamping and High Velocity Guillotine Shearing
Severing a thick, multi layer terry towel web cleanly without dragging fibers or fraying weft threads requires rigid material stabilization during the cutting stroke. As the optical sensor detects the target cutting position, high speed AC servo feed rollers decelerate the web smoothly to a complete stop, centering the cutting lane directly beneath the cutting blade.

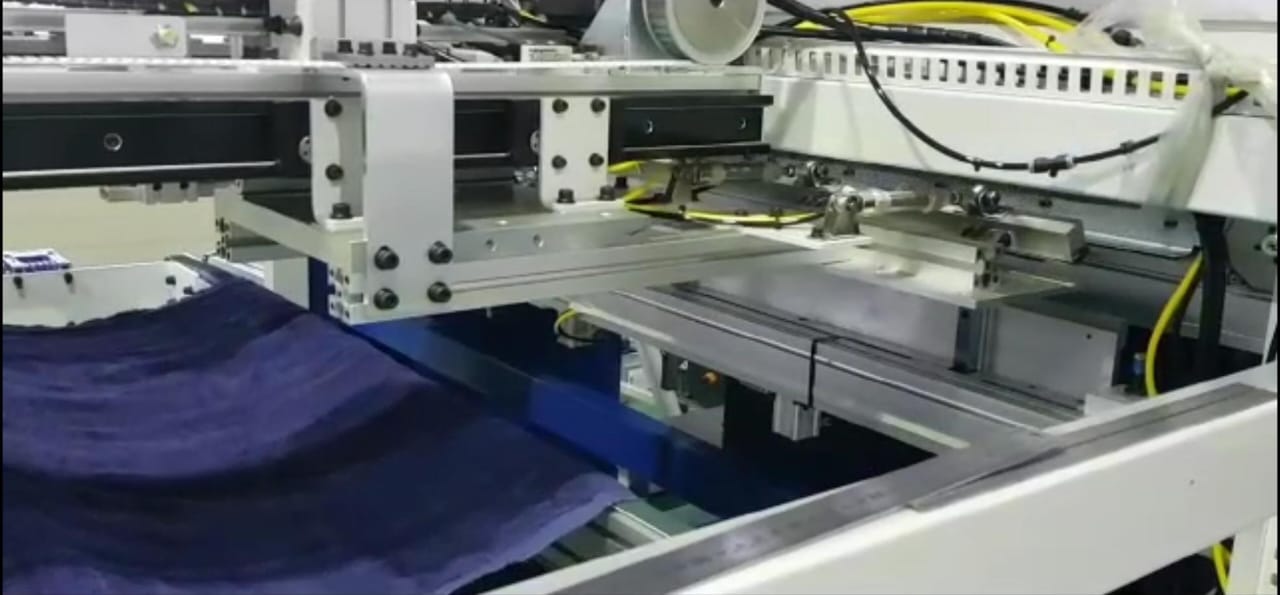

Instantaneously, heavy duty pneumatic clamping bars descend across the entire fabric width, locking the towel securely against the hardened steel cutting table with uniform pressure. A high velocity motorized guillotine blade or flying rotary shear knife descends, shearing through the clamped fabric web with immense shearing force. The cut completes in less than two hundred milliseconds, producing a crisp, perpendicular edge with zero pulled threads or uneven fringes. The pneumatic clamps release instantly, and feed belts accelerate the next towel forward without hesitation.
Continuous Servo Infeed and Tension Accumulation
Operating a high speed cross cutter requires seamless synchronization between upstream continuous roll unwinding and intermittent stop and go cutting cycles. Continuous unwinding cannot be stopped and started abruptly without causing severe fabric jerk, motor overheating, and tension spikes. The Bando cross cutting system integrates a motorized vertical j scray or pneumatic dancer arm accumulator between the unwinding cradle and the cutting zone.
The unwinding cradle unrolls master rolls continuously at steady, calibrated speeds. The intermediate dancer accumulator absorbs fabric during the split second clamping and cutting stroke, then releases stored fabric smoothly as high speed servo feed rollers advance the web for the next cut. This sophisticated tension buffering isolates the master roll from mechanical shocks, ensuring completely stable fabric tension and preventing dimensional stretching during measurement.
Automated Discharge Conveyors and Bundle Formation
Severed towel blanks must be discharged smoothly without folding back on themselves or jamming downstream machinery. The Bando cross cutter features a high speed discharge conveyor belt equipped with integrated vacuum hold down suction. As each towel is cut, vacuum suction holds the leading edge flat against the conveyor belt, pulling the cut piece forward briskly away from the cutting blade.
The discharge conveyor transports individual towels onto an automatic stacking table or feeds them directly into an in line Alpha Auto Cross Hemming Machine. Optional bundle counters stack cut towels into preset batches of ten, twelve, or twenty four pieces, automatically advancing completed stacks onto rolling carts or packaging stations. A single operator comfortably manages the entire unwinding, cutting, and stacking sequence, dramatically lowering factory labor overhead.
Waste Minimization and Flaw Elimination Control
Weaving defects, dye stains, or oil spots occasionally occur on master towel rolls. Manually identifying and cutting out defective towels wastes significant production time and leads to accidental packing of sub standard goods. The Bando cross cutter incorporates manual and automated defect rejection protocols.
When line operators spot a visible fabric defect, they press an external defect button on the control console. The machine controller automatically recalculates the cutting sequence, executing a rapid double cut to isolate and reject the flawed towel segment into a lower scrap bin without halting the main production flow. This automated defect excision guarantees that only flawless, premium quality towel blanks proceed to downstream hemming and packaging.
To examine maximum cutting widths, blade options, and cycle speed ratings, visit the official Bando Auto Cross Cutting Machine product catalog page for expert technical consultations and machinery specifications.
Preventive Maintenance Schedules for Cross Cutting Automation
Ensuring micro millimeter cutting precision and blade durability requires regular preventive maintenance practices:
- Daily optical sensor lens inspection and cleaning: Clean optical border detection lenses using soft optical lens paper to remove cotton dust and lint deposits every shift.
- Daily guillotine blade lubrication and check: Inspect the cutting blade cutting edge for dullness or micro nicks and apply a light film of synthetic lubricant along the blade guide ways.
- Weekly cutting counter blade clearance verification: Check clearance between the upper moving guillotine blade and stationary lower anvil bed using precision feeler gauges.
- Monthly pneumatic cylinder and valve inspection: Check air line regulators, lubricators, and pneumatic clamping cylinder seals for pressure drops or air leakage.
- Quarterly servo feed roller belt tension check: Inspect timing belts connecting servo motors to feed drive rollers to ensure zero positional backlash.
- Biannual guillotine blade sharpening: Swap out cutting blades with freshly sharpened spares from the toolroom to maintain effortless, burr free cutting action.
Comprehensive PLC Touchscreen Interface and Production Analytics
The machine is managed through an industrial touch panel featuring intuitive graphical menus in multiple languages. Machine operators easily program towel lengths, optical contrast sensitivities, batch quantities, and conveyor speeds. Built in software algorithms automatically track shift production totals, cut counts, cycle efficiencies, and maintenance intervals.
Integrated Ethernet and RS 485 communication ports allow the cross cutting machine to interface with central plant supervisory control and data acquisition systems. Production managers monitor real time machine output and cutting statistics from remote office dashboards, maximizing overall equipment effectiveness and production planning accuracy.
Dynamic Laser Projection Alignment and Manual Override Ergonomics
While automated optical border detection operates autonomously during continuous production, setup verification and specialty pattern handling benefit from visual operator feedback. The Bando Auto Cross Cutting Machine features bright green laser projection lines projected directly across the cutting anvil.
The laser line indicates the exact instantaneous shearing path of the guillotine blade, allowing machine operators to visually verify alignment during initial roll loading and recipe setup. If an abnormal weaving defect or irregular border header passes through, operators can utilize an ergonomic jog pendant to override automated positioning manually, jogging the fabric in zero point one millimeter steps to execute precision corrective cuts without wasting adjacent good towels.
