Cantilever Racking System

Cantilever Racking System

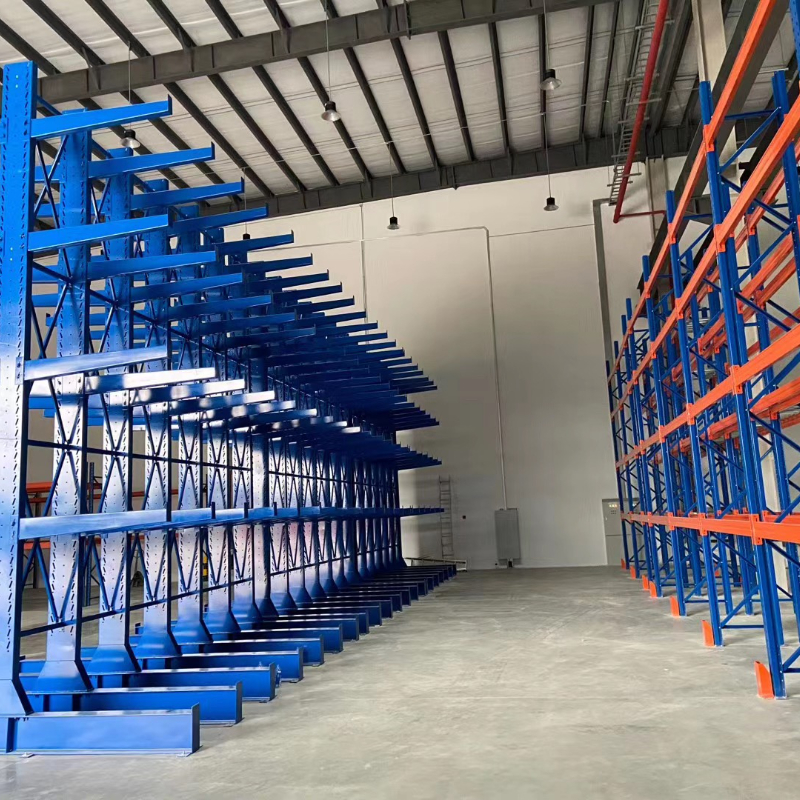

The Suhong Cantilever Racking System is a specialized heavy-duty storage solution designed for items that cannot be stored in conventional pallet racking — such as fabric rolls, carpet rolls, pipes, timber, steel bars, and other long or irregularly shaped materials. Its open-front design provides unobstructed access for forklifts, cranes, and manual handling.

Technical Specifications

• Material: Q235B structural steel (hot-rolled)
• Arm Length: 500–1500mm (customizable)
• Arm Load Capacity: 500–1000 kg per arm
• Column Height: Up to 8000mm
• Column Pitch: 900–1500mm (adjustable)
• Configuration: Single-sided or double-sided
• Arm Pitch: Adjustable at 75mm or 100mm increments
• Surface Treatment: Powder-coated (RAL colors, epoxy coating)
• Seismic Rating: Available for Zone 3/4 applications

Design Features

The cantilever arms are adjustable in height at 75mm or 100mm increments, allowing reconfiguration as storage needs change. Both single-sided (wall-mounted) and double-sided (freestanding) configurations are available. The system is designed to comply with FEM/RMI/AS4084 international standards.

Textile Industry Applications

In textile warehouses, cantilever racking is the ideal solution for storing fabric rolls of varying diameters and lengths. The adjustable arms accommodate different roll sizes, and the open-front design allows easy loading and unloading with forklifts or overhead cranes. Also suitable for storing carpet rolls, finished textile bales, and raw material tubes.

Structural Advantages

• 100% selective — every item is directly accessible
• No front column obstruction for easy forklift access
• Adjustable arm heights for flexible storage configurations
• Hot-rolled Q235B steel for maximum structural integrity
• Powder-coated finish for corrosion resistance
• Base plates with anchor bolts for secure floor mounting
