Multi-Tier Mezzanine Racking

Multi-Tier Mezzanine Racking

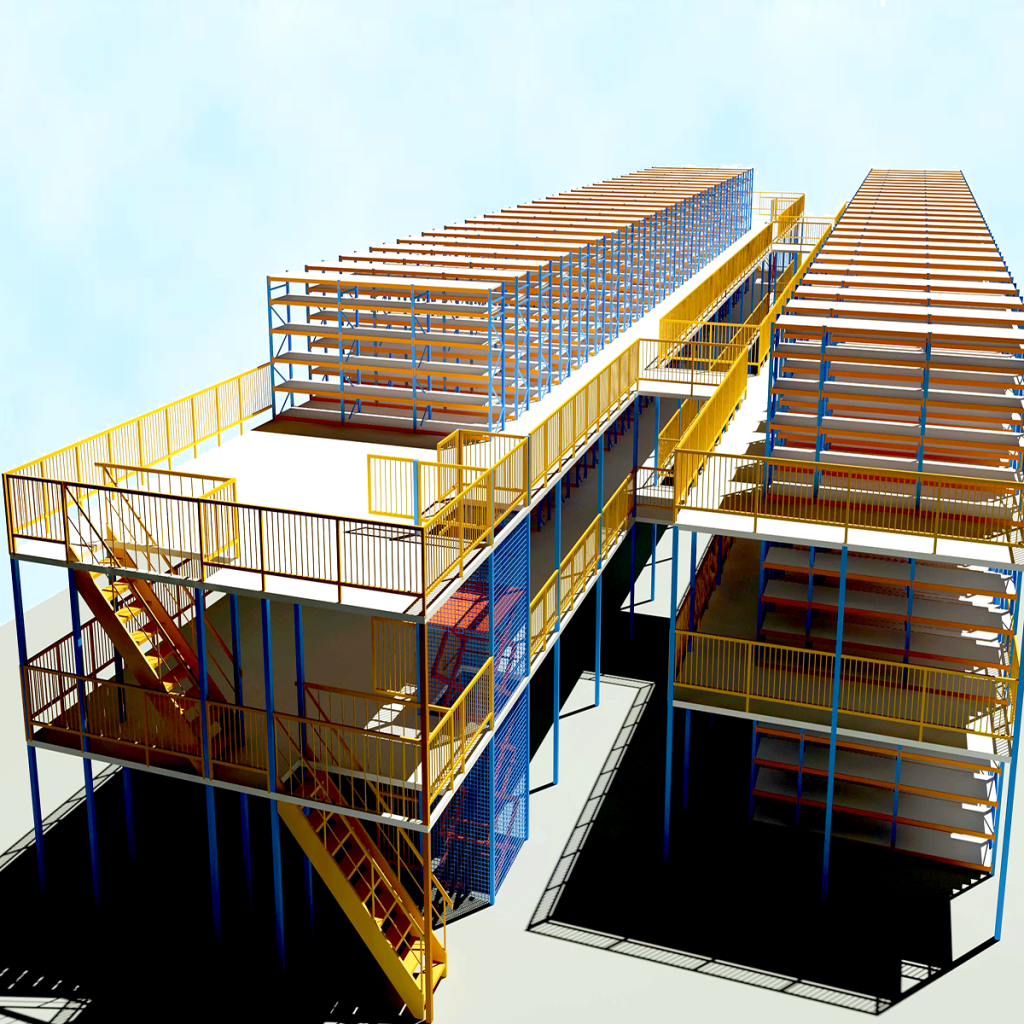

The Suhong Multi-Tier Mezzanine Racking System is an advanced vertical storage solution that multiplies your available warehouse floor space by adding 2–4 operational levels within your existing building. By leveraging vertical height, you can double, triple, or quadruple your effective storage area without expanding your warehouse footprint.

Technical Specifications

• Material: Q235B structural steel columns and beams
• Number of Tiers: 2–4 levels (customizable)
• Level Height: 2.2–3.0m per tier (adjustable)
• Total Height: Up to 12m
• Floor Load Capacity: 300–1000 kg/m² per level
• Shelf Load: 300–600 kg per individual shelf level
• Column Pitch: 1500–2000mm
• Flooring Options: Steel grating, checkered plate, plywood
• Surface Treatment: Powder-coated (standard RAL colors)
• Accessories: Staircases, guardrails, pallet gates, conveyors

Flooring Options

Multiple flooring types are available to suit different operational requirements:

• Steel Grating: Lightweight, good ventilation, suitable for fire sprinkler systems
• Checkered Steel Plate: Solid, anti-slip surface for heavy foot and cart traffic
• Plywood/MDF: Cost-effective option for light-duty applications

Space Optimization

In textile warehousing, the mezzanine system is ideal for organizing fabric samples, finished garment storage, accessory warehousing, and pick-and-pack operations across multiple levels. Each level can be configured with different shelving types — medium-duty shelving, carton flow racks, or open floor space for bulk storage.

Safety Features

• Full-height safety guardrails on all levels
• Anti-collapse mesh on back and sides
• Standard staircases with non-slip treads
• Pallet gates for safe goods transfer between levels
• Fire sprinkler compatibility with steel grating floors
• Emergency exits and signage as per local fire codes
