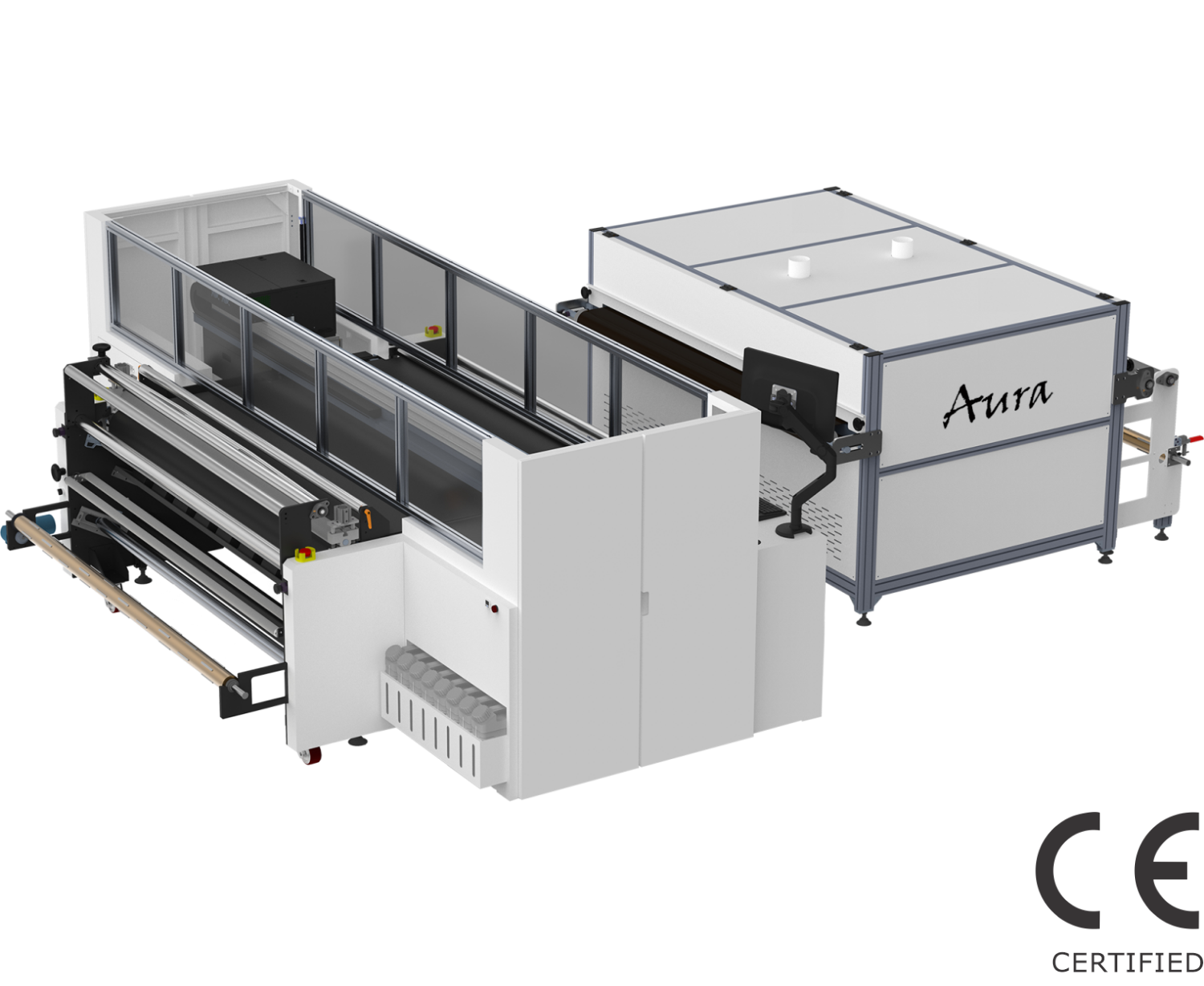

The global textile and fashion apparel industries are undergoing a massive technological shift from traditional rotary screen printing toward high speed digital textile printing. Screen printing requires vast quantities of fresh water for screen washouts, generates chemical dye effluent, demands weeks of cylinder engraving lead times, and enforces enormous minimum order quantities. The Aura Digital Textile Printing Machine represents the pinnacle of modern direct to fabric printing technology, combining continuous adhesive transport blankets, industrial printheads, and in line curing to deliver extraordinary color saturation, lightning fast order fulfillment, and eco friendly digital production.
Continuous Adhesive Transport Blanket Engineering
Printing directly onto elastic circular knits, gossamer silks, delicate viscose webs, and lightweight modal fabrics presents a daunting mechanical challenge. Flexible textile fabrics easily wrinkle, stretch diagonally, or curl at the selvages under ink deposition or gantry movement. The Aura Digital Textile Printing Machine solves this problem by utilizing a continuous seamless thermoplastic polyurethane transport blanket coated with specialized water soluble or thermoplastic adhesive.
Fabric unwinds from continuous roll feeders across active motorized expander bars and bow skew rollers that smooth out wrinkles. An oscillating motorized pressing roller presses the incoming fabric web firmly against the tacky blanket surface, adhering the textile completely flat. Throughout its journey beneath the printing heads, the fabric remains bonded to the blanket, experiencing zero mechanical tension, distortion, or edge curl. Knits with thirty percent elastane content print with the identical dimensional stability as rigid woven canvas.
High Output Industrial Piezoelectric Printhead Arrays
The imaging engine of the Aura digital printer features high performance industrial piezoelectric printheads arranged in staggered dual or quad row configurations. Operating at firing frequencies up to thirty kilohertz, these heavy duty printheads discharge tens of thousands of microscopic ink droplets per second from each nozzle channel. Linear magnetic drive motors propel the printhead carriage smoothly at velocities exceeding one point eight meters per second.
Production speeds range from one hundred fifty square meters per hour in high speed commercial production modes up to three hundred square meters per hour, rivaling traditional sample rotary screen machines. Multi drop variable droplet technology deposits precise droplet volumes between four picoliters and seventy two picoliters, enabling deep dye penetration through thick cotton twill and heavy terry toweling while maintaining razor sharp edge fidelity on fine chiffon.
Automatic Blanket Washing and Water Recirculation System
As porous textile fabrics absorb wet ink, excess dye often penetrates through loose yarn interstices, leaving residual ink droplets on the transport blanket surface. If left unwashed, this wet ink would contaminate the back face of subsequent fabric yards. The Aura system incorporates an automated continuous blanket washing unit positioned beneath the return loop of the conveyor table.
Motorized cylindrical brush rollers scrub the returning blanket surface with warm water spray bars, loosening lint, dust, and residual ink deposits. A series of precision polyurethane squeegee blades and continuous vacuum air knives strip away all moisture, drying the blanket completely before it re enters the fabric loading zone. An integrated water filtration and recycling unit filters dislodged fibers and recirculates wash water, minimizing fresh water consumption to a fraction of traditional screen washing ranges.
Versatile Dyestuff Chemistries for Diverse Textile Fibers
Different textile fibers require specific dye chemistry formulations to achieve permanent chemical bonding and high wash fastness. The Aura platform is engineered to run a wide variety of industrial water based ink formulations, tailored to specific plant production requirements:
- Reactive dye inks for natural cellulosic fibers including combed cotton, linen, viscose, and modal, delivering vivid colors and exceptional wash fastness.
- Disperse dye inks for polyester sportswear, athletic performance apparel, and outdoor upholstery textiles with high sublimation fastness.
- Acid dye inks for natural protein fibers such as luxury silk and wool blends, producing luminous tonal vibrancy and superior light fastness.
- Pigment inks paired with in line thermal binders for universal fiber printing across cotton polyester blends without requiring extensive post print washing.

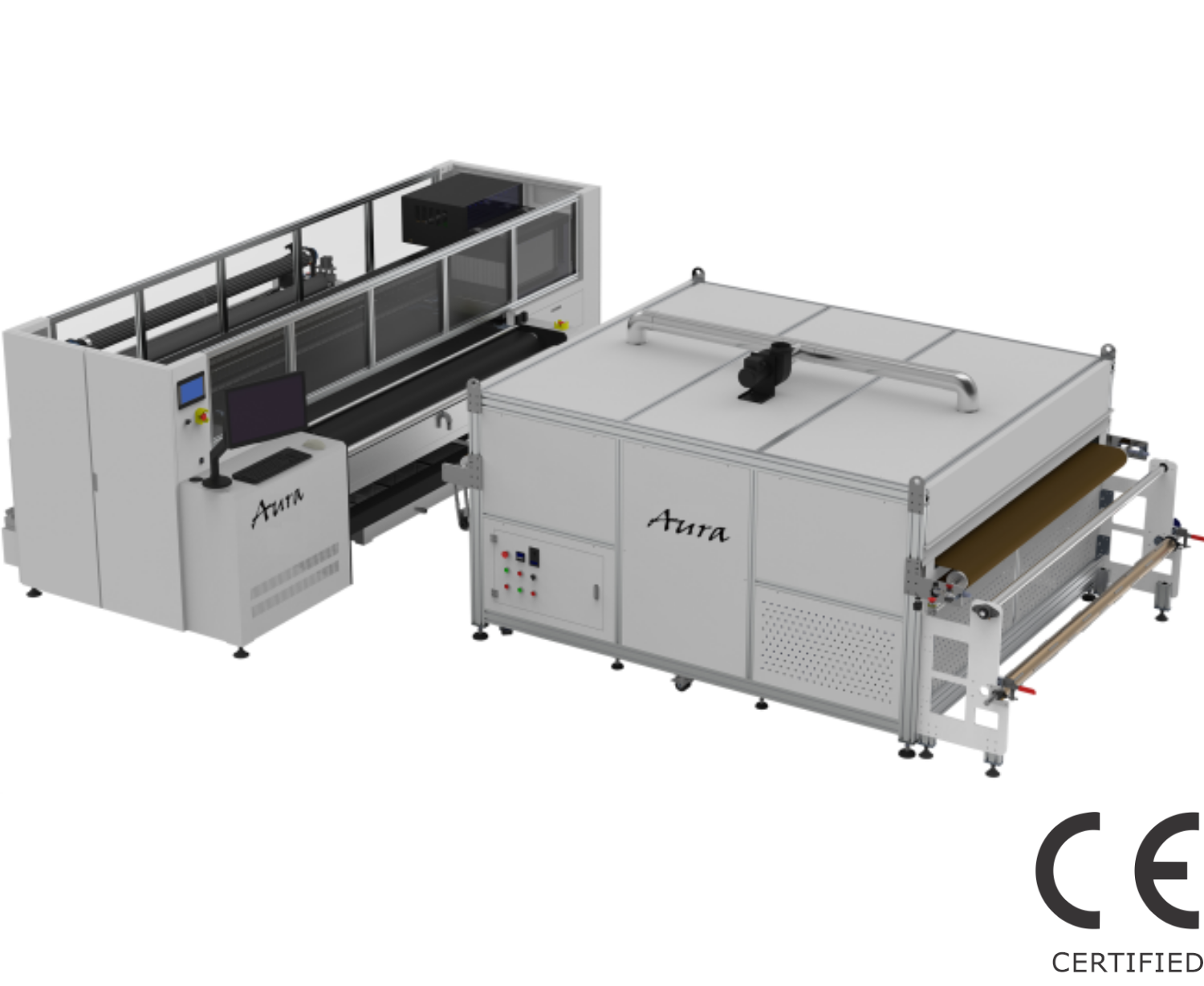

Integrated In Line Drying and Heat Fixation Tunnel
Immediately following ink deposition, printed fabrics detach from the transport blanket and enter an integrated multi tier hot air impingement drying tunnel. High velocity circulating air blowers paired with modulating infrared heating elements evaporate ink moisture rapidly, preventing wet ink offset when fabric rewinds onto take up rolls.
When running industrial textile pigment inks, the drying chamber can be operated at elevated temperatures up to one hundred sixty degrees Celsius, achieving instantaneous in line thermal cross linking of polymeric ink binders in a single continuous pass. Fabrics emerge from the dryer completely cured and ready for immediate garment cutting and sewing, eliminating external steaming, washing, and drying processes entirely.
To examine available print width configurations, printhead counts, and ink consumption metrics, visit the official Aura Digital Textile Printing Machine product catalog page for in depth technical specifications and sample printing bookings.
Preventive Maintenance Schedules for Industrial Textile Printers
Maintaining high speed direct to fabric print quality requires disciplined daily, weekly, and monthly maintenance protocols:
- Daily printhead purging and moist capping: Perform automated printhead purging at shift start and confirm that capping station rubber seals maintain airtight contact during overnight shutdowns.
- Daily blanket squeegee and scraper inspection: Inspect lower polyurethane blanket scrapers for lint accumulation or nicks that could leave water streaks on the transport blanket.
- Weekly ink degassing and pressure verification: Check vacuum degassing systems to ensure negative pressure levels remain stable and ink lines remain free of entrained air bubbles.
- Monthly transport blanket adhesive renewal: Reapply specialized water soluble or thermoplastic adhesive coating to the transport blanket using automated spreading bars to maintain uniform tack.
- Quarterly linear motor magnetic track and bearing check: Inspect linear motor magnetic tracks for textile lint, clean optical linear encoders, and grease carriage linear guide blocks.
- Biannual in line dryer heating element and blower inspection: Clean lint deposits from internal dryer circulation fans and verify thermal sensors to ensure uniform chamber temperature.
Raster Image Processing and Textile Pattern Repeats
Textile printing demands flawless execution of continuous pattern repeats, step and repeat layouts, and half drop configurations across infinite fabric yardages. The Aura printing system is powered by dedicated textile raster image processing software engineered specifically for fashion and home furnishing workflows.
The raster image processor handles massive multi gigabyte graphic files with zero processing lag, calculating seamless geometric repeats across fabric widths up to three point two meters. Advanced color separation engines support eight to twelve independent color channels, including spot colors like fluorescent pink and neon yellow. Real time ink consumption forecasting algorithms calculate exact milliliters of dye required per square meter, empowering factory production managers with precise per garment cost accounting.
Ink Degassing Systems and Negative Pressure Meniscus Regulation
Operating industrial piezoelectric printheads continuously without nozzle dropouts requires meticulous fluid dynamics control. Dissolved micro air bubbles inside fluid lines cause acoustic cavitation when piezoelectric actuators fire, absorbing pressure pulses and preventing ink droplets from ejecting cleanly. The Aura printing range integrates hollow fiber membrane contactor degassing units that pull dissolved gases out of liquid inks before fluid reaches carriage sub tanks.
Simultaneously, digital electronic pressure transducers regulate negative meniscus pressure within sub tanks to within fractions of a millibar. This slight vacuum holds ink meniscuses poised concave at nozzle orifices without dripping or sucking air into the printhead. Even during high acceleration carriage turnaround maneuvers, the meniscus remains rock steady, guaranteeing continuous, uninterrupted nozzle firing across million meter print runs.
Automated capping stations maintain constant contact with nozzle plates during production pauses, bathing nozzles in humidified preservation solution to prevent dry ink crusted orifices. Ultrasonic mist humidifiers mounted inside the carriage envelope maintain ninety percent local relative humidity around printheads, preventing solvent evaporation during dry winter operating shifts.
