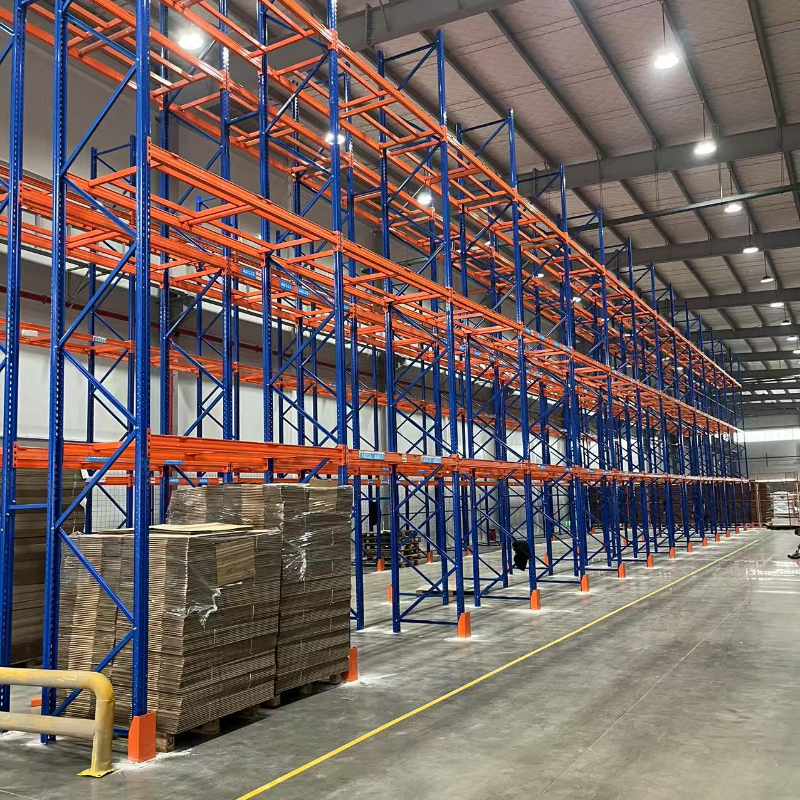

Heavy Duty Selective Pallet Racking
The Suhong Heavy Duty Selective Pallet Racking System is the most versatile and widely used warehouse storage solution. Every pallet is directly accessible from the aisle — providing 100% selectivity for fast, efficient retrieval. With adjustable beam heights and load capacities up to 3000 kg per level, this system is ideal for warehouses handling diverse SKUs requiring frequent access.
Technical Specifications
- Material: Q235B structural steel, cold-rolled upright profiles
- Beam Load Capacity: Up to 3000 kg per pair of beams
- Beam Lengths: 1829mm, 2438mm, 2743mm, 3048mm, 3658mm
- Upright Heights: 3000mm to 12000mm
- Upright Frame Capacity: Up to 30,000 kg per frame
- Beam Adjustments: 50mm pitch increments
- Connection Type: Teardrop (keyhole) boltless connection
- Pallet Sizes: Standard Euro and industrial pallets
- Surface: Powder-coated in safety orange/blue or custom RAL
- Accessories: Wire decking, pallet supports, column protectors
100% Selectivity
Every pallet position is directly accessible from the forklift aisle. This makes selective racking ideal for warehouses with diverse SKU counts where any pallet may need to be retrieved at any time. There is no need to move other pallets to reach the one you need.
Teardrop Connection System
The industry-standard teardrop (keyhole) beam connection allows tool-free beam height adjustments in 50mm increments. Beams simply hook into the upright perforations and lock in place with safety clips. This makes reconfiguration fast and easy as storage requirements change.
Textile Warehouse Applications
In textile warehouses, selective racking is ideal for multi-SKU environments storing different fabric types, garment styles, sizes, and colors. Common applications include finished goods warehousing, distribution centers, and raw material storage where fast access to specific pallets is critical for production and order fulfillment.
Safety & Accessories
- Column protectors (bolt-on and wrap-around types)
- Wire mesh decking for carton and irregular load support
- Pallet support bars for damaged pallet protection
- Row spacers for maintaining structural alignment
- End-of-aisle protectors and guide rails
- Seismic bracing for earthquake-prone regions
- Safety signage and load capacity notices
